1 T/H single-stage RO reverse osmosis equipment, food-grade material, efficient filtration, remove odor and remove impurities

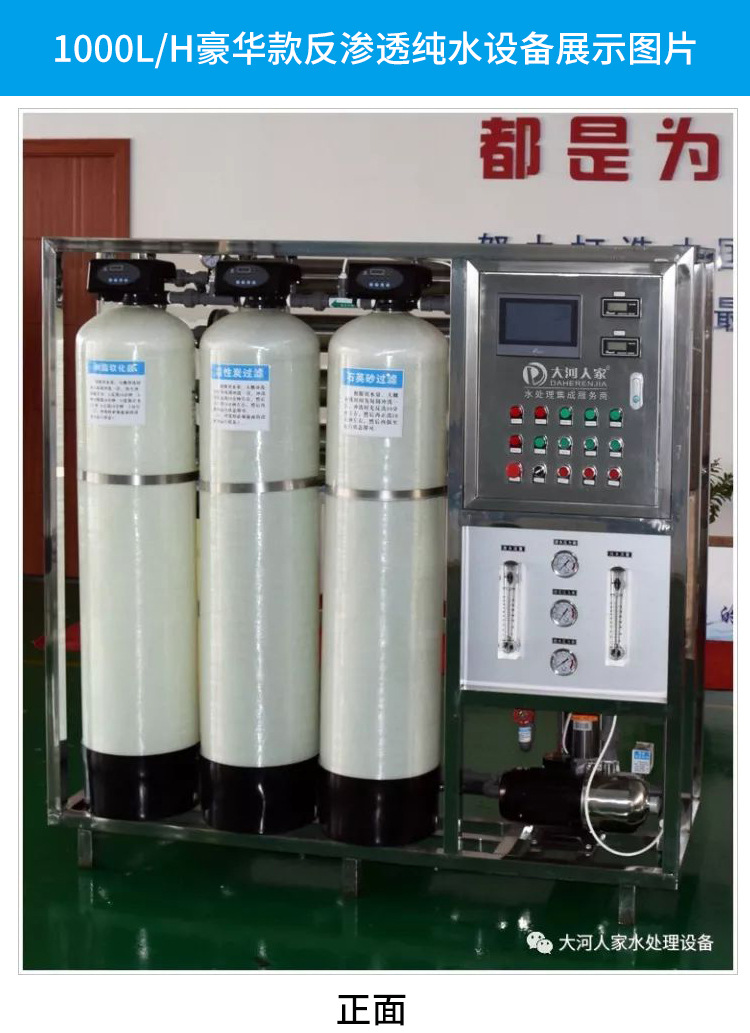

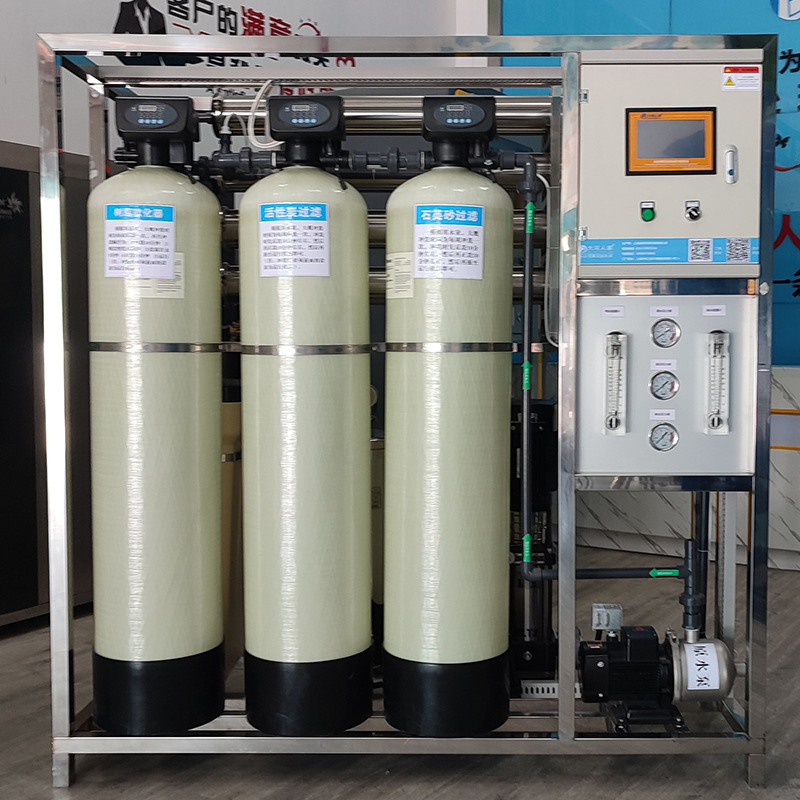

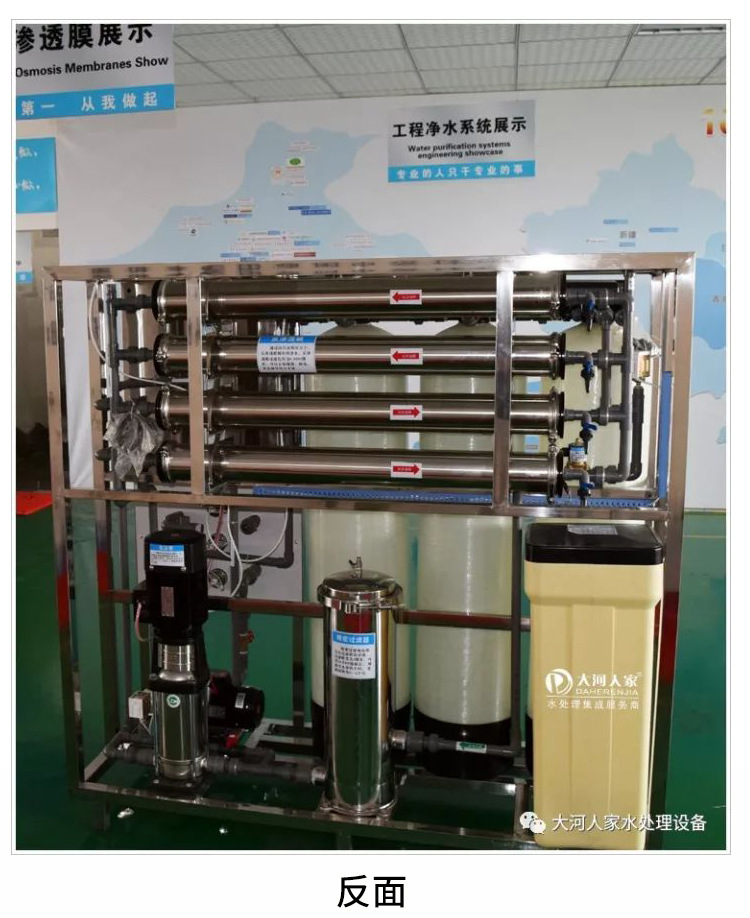

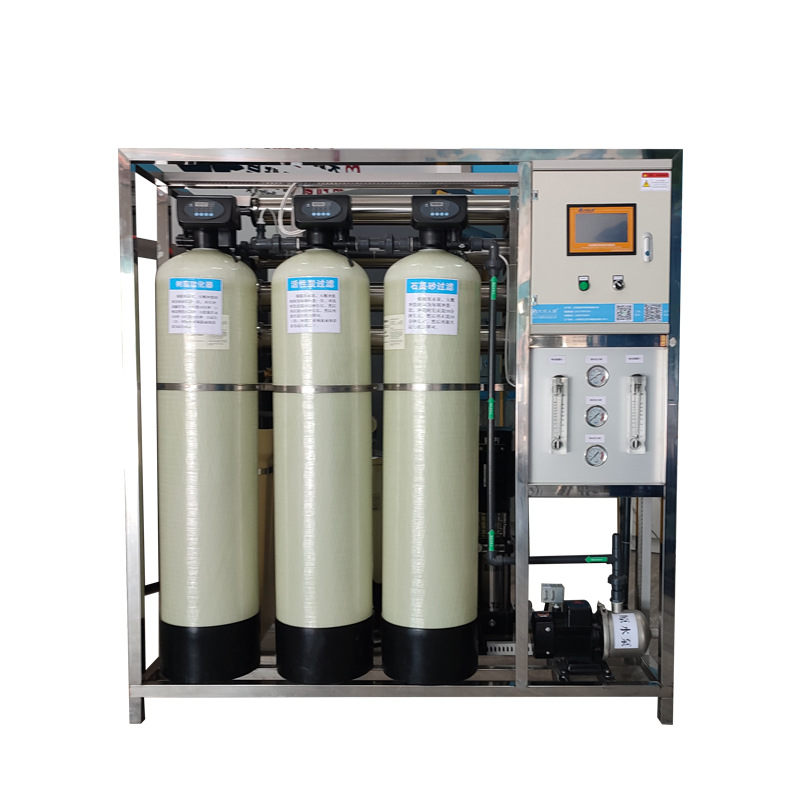

1000 L/H single-stage RO reverse osmosis equipment
RO system is raw water through precision filter, granular activated carbon filters.activated carbon filters, compression, and then through the pump pressure, theuse of reverse osmosis membrane pore size 1/10000um make a higher concentration of water into low concentration of water, while the industrial pollutants,heavy metals, bacteria, viruses and other impurities in the water mixed with a l-arge number of full isolation, to achieve the required physical and chemical in-dicators for drinking and hygiene standards, outputs to clean pure water is thebest choice of body replenish water quality.
1000 L/H single-stage RO reverse osmosis equipment Main parameters
Water inlet requirements | Tap water may meet the water quality requirements of the "Sanitary Drinking Water Standards" (GB5749-85). |
The inlet water quality requirements of the membrane section: SDL; ≤5, turbidity ≤1, iron content ≤0.1mg/, free chlorine ≤0.1mg/l. |
Water quality | The effluent water quality and sanitation comply with the Ministry of Health's request |
Water production | 1000L/H, 25℃ water temperature |
Recovery rate | 60%-65% |
water temperature | 5℃~45℃ |
power | 2.5KW |
Suitable power supply | AC380V 50HZ |
Net weight of equipment | ≈450KG |
Appearance size | 1650*600*1700mm (Length x Width x Height) |
Interface size | Water inlet G≥32 ，Concentrated water outlet>25， Water purification outlet≥25 |
1000 L/H single-stage RO reverse osmosis equipment system flow chart

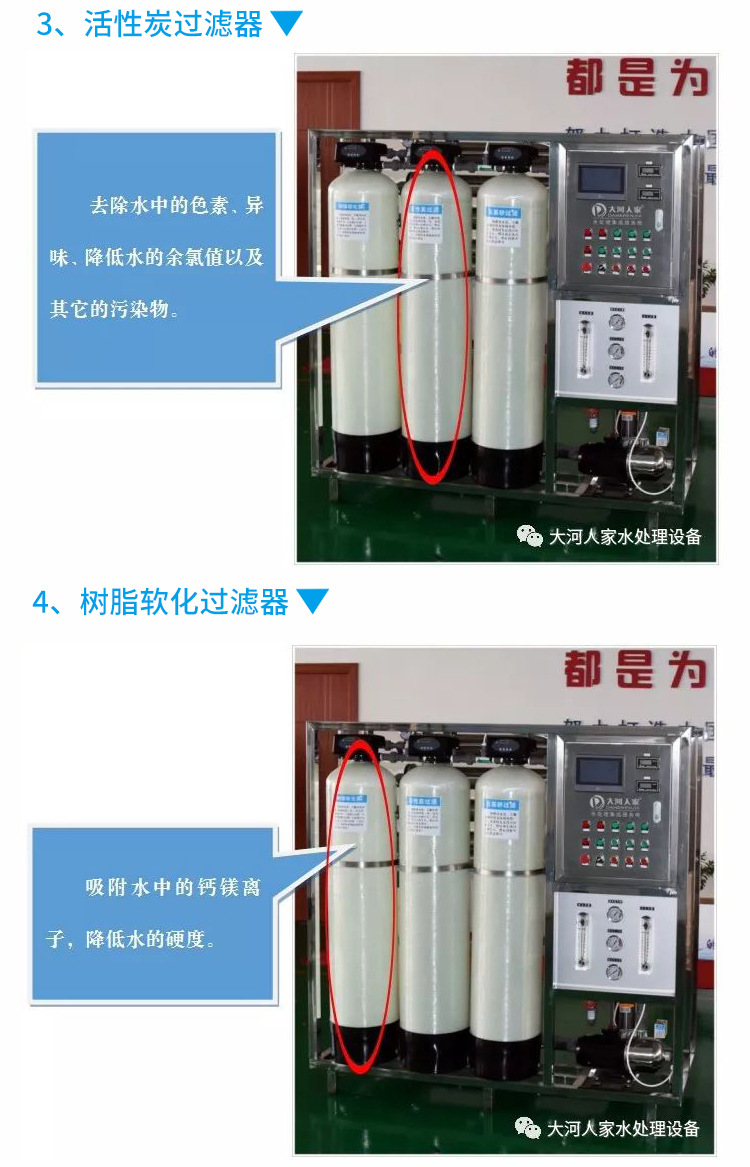

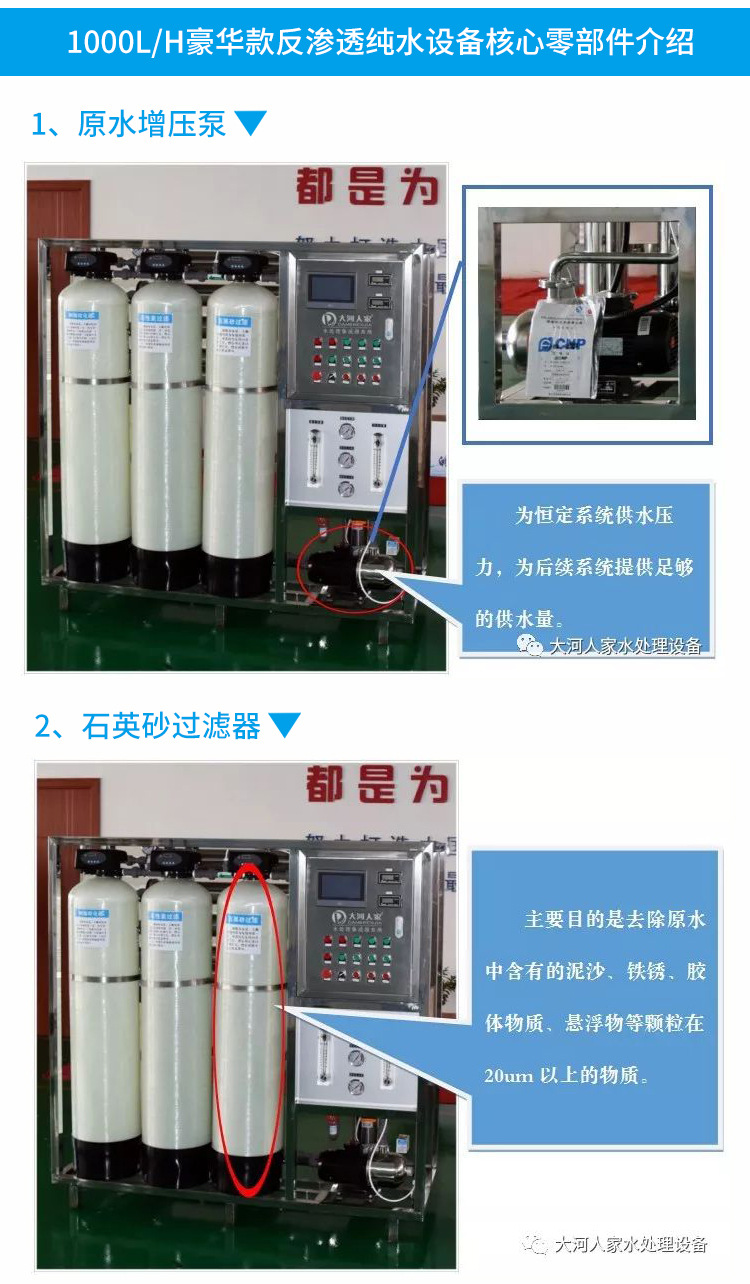

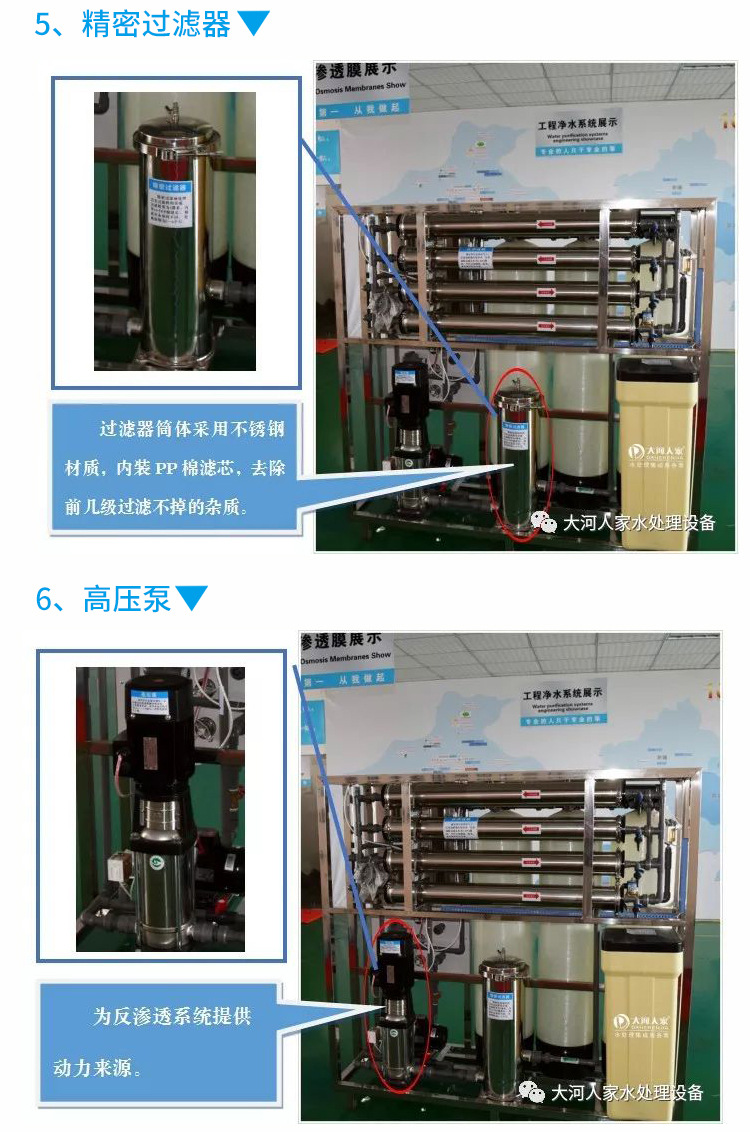

Municipal tap water → Raw water booster pump → Quartz sand filter → activated carbon filter → Resin softener → Precision filter → High pressure pump → Reverse osmosis system → Equipment water outlet
application
Treatment of drinking water for daily use; Deep purification of tap water, well water, ancsurface water; Process water, food and medicineThe treatment of product water, clarifi.cation, separation, purification, and concentration of various materials; Industrial wast-ewater and sewage treatment department Management, reclaimed water reuse, ROpre-treatment
